⚡ Power up your projects with precision and style!

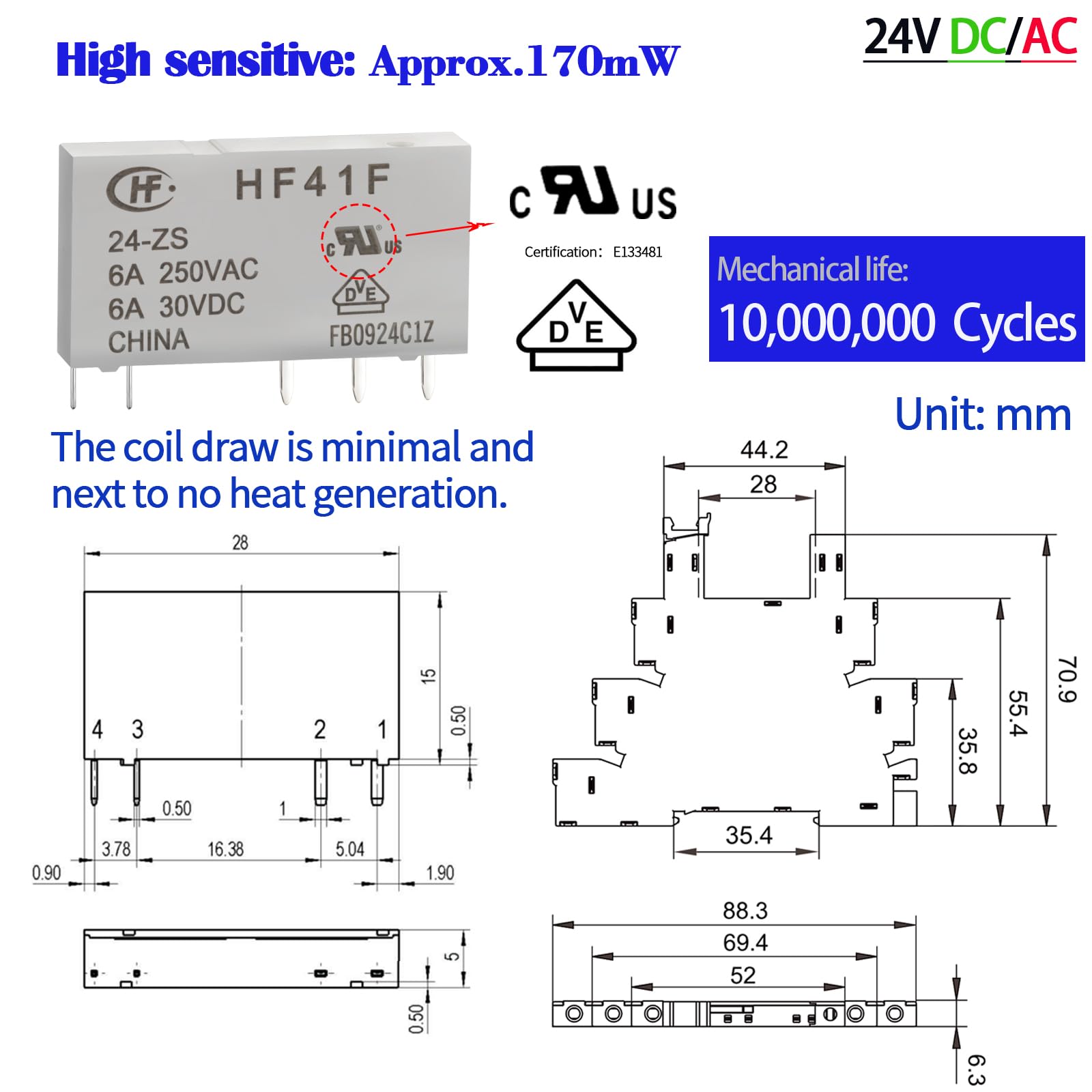

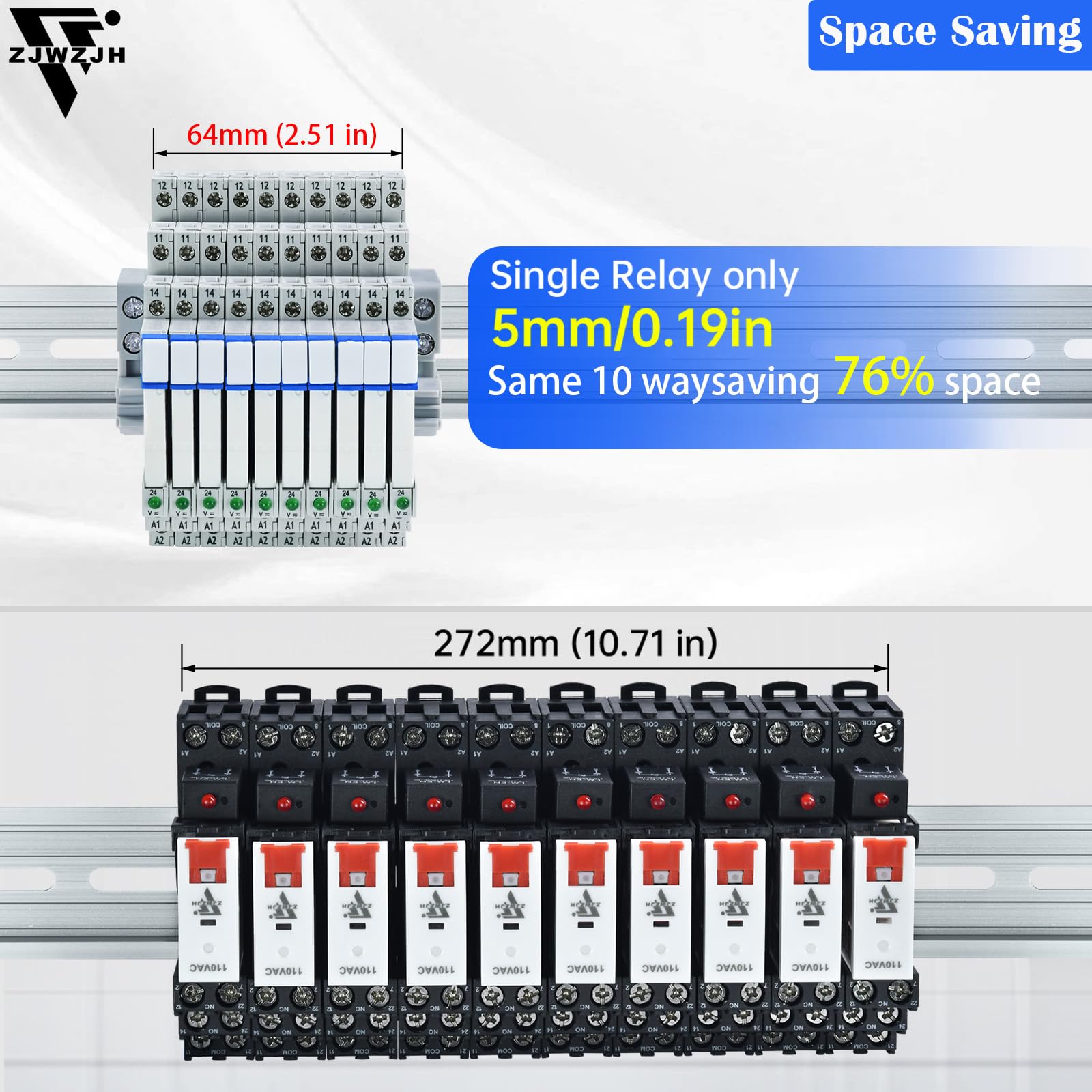

This 3-piece miniature power relay set features 24V AC/DC coil voltage, 6A contact rating, and SPDT configuration with LED indicators. Certified by UL, VDE, CSA, and CE, it boasts a slim 5mm profile and robust mechanical life of 10 million cycles. Designed for professional-grade applications, it includes screw terminal sockets with finger protection and DIN rail mounting for quick, safe installation in demanding environments.
| Connector Type | Screw |
| Contact Material | Silver Tin Oxide |
| Contact Type | Normally Open |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
| Brand | ZJWZJH |
| Operation Mode | ON-NONE-OFF |
| Wattage | 180 Watts |
| Coil Voltage | 24 Volts |
| Contact Current Rating | 6 Amps |
| Maximum Switching Current | 6 Amps |
| Maximum Switching Voltage | 240 Volts |
| Minimum Switching Voltage | 5 Volts (DC) |
| Specification Met | CE, RoHS, UL, din |
| Upper Temperature Rating | 70 Degrees Celsius |
| UPC | 732688173614 |
| Manufacturer | ZJWZJH |
| Country of Origin | USA |
| Model number | HF41F/24-ZS, 41F-1Z-C2 |
| Item Weight | 31.8 g |
| Product Dimensions | 8.79 x 7.09 x 0.64 cm; 31.75 g |
| Item model number | HF41F/24-ZS, 41F-1Z-C2 |
| Item Height | 0.25 Inches |
| Item Width | 2.79 Inches |
| Included Components | 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw |
| Are batteries included? | No |
