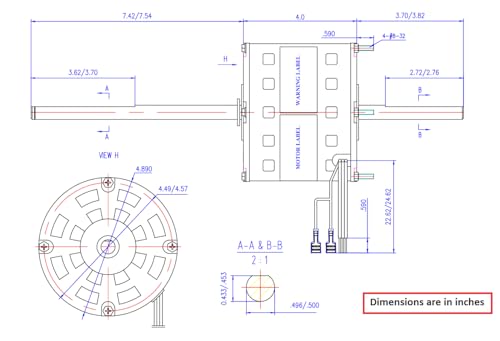

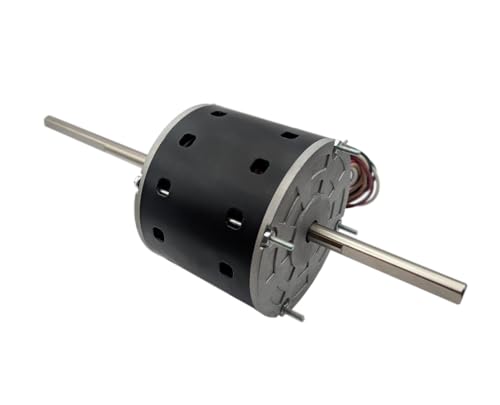

RV Air Conditioner Motor | Direct Replacement for Fasco D1092, Coleman Mach RV AC Motor 7184-0156, 7184-0432, 1468-3069 Zhongshan Broad-Ocean Y6L457D01L | 1/3 HP, 115 Volts, 1675 RPM, 2 Speed

Exact fit for our rooftop RV ac unit. 30 minute install. Running nice a quiet, running like a charm for now. Installed 5 months ago. Use it nearly every day.

Bolt pattern was slightly different than OME, But WORKS GREAT!!! and Cost LESS also Much Quieter also!! My first time every replacing an A/C fan motor, the process isn't extremely easy to begin with. the different bolt pattern was less of a headache than the entire process of pulling the bad one out. If you can get the bad motor out and the fan blades off without damaging them or the coils, mounting this motor is a walk in the park.

My original motor had the name Zhonghai Broad - Ocean Motor Company LTD. Its number was Y6L457DO1L The number which I had trouble matchings was the 1468-308. The Fasco D1092 was a perfect match. The wires are all color coded. The installation was simple, as the only access needed was from the top. The two clamps which hold on the two fans require a 4 mm Allen wrench. I used some PB penetrating oil to loosen the fans which made the job easier, but it would not be necessary in all cases. The wires required three connectors which were not included, so I purchased three orange wire connectors (commonly called wire nuts), from a local car parts store. Outside of the Allen wrench, the only tools needed were a number 2 Phillips screwdriver, a number 3 Phillips screwdriver, a pliers to cut the wires and a knife or wire stripper. I used a handbrush to clean the fins while I had easy access. This new motor is whisper quiet.

This was to repair a Coleman Mach AC unit on a 2003 Winnebago itasca. The replacement motor was slightly different from the original in that the distance between the threaded mounting bolts on the motor did not align with the holes on the mounting plate (Metric vs Standard maybe?). The holes all needed a slight elongation on the mounting plate for the two to fit together. Also the original motor had a brown wire and a brown with white stripe wire for connecting to the capacitor. The replacement motor had two identical brown wires no white stripe. Assuming there was a polarity on the capacitor ( did not have info to determine this) i was able to check the old motor resistance between the brown wire and the black wire. Old Motor: resistance on brown/white was around 6 ohms and between the solid brown wire and the black was 56 ohms. Using this measurement I was able to determine which of the 2 solid brown wires was equivalent to the solid brown and brown with white stripe on the original motor. Also the stud bolt for the angle bracket was not on the new motor,, but u can remover the bolt and thread it though the bracket and re-bolt it into the motor before installation. The holes did line up correctly on the bracket. Overall it was a little more work than i expected. But not much more. So i am happy and now at the beginning of august i have a working AC unit again.

Works really well haven't had any problems

I got a 2017 Jayco and this motor was an exact replacement. Same wiring, same bolt pattern, same everything. Not sure if it say it but it does come with a capacitor. Took me maybe 25 minutes to swap out, don’t call someone. This is an easy job for even someone not very inclined.

Be warned! Does not have the support bolt for the mounting bracket. This will lead to rattling and excessive movement of the motor. I wouldn’t purchase because it is not OEM.

This motor was a perfect fit and easy to install... as some have mentioned that the support bracket on original motor has a stud to fasten to this one does not. I pulled one of the bolt/stud from old one and replaced factory bolt so I could install support bracket . Easy fix !! Great quiet running motor!!!!

Bought for my 2012 park model due to my old one giving up which sucked as was 30c + outside but this was very affordable compared to rv shops did arrive late but not by much plus the extra warranty through Amazon comes in handy as always gotta expect the unexpected

Product was a perfect replacement for my Coleman mach AC unit. Took about an hour to replace. Added bonus, it was delivered 5 days early. In 38c weather, so happy! Would high recommend!

This motor was a perfect fit for my coleman mach ac. I was having trouble finding a motor that matched the zhongshan broad-ocean moror co. Y6L457DO1L (1468A306).

Perfect match for my ac unit motor on my fifth wheel
