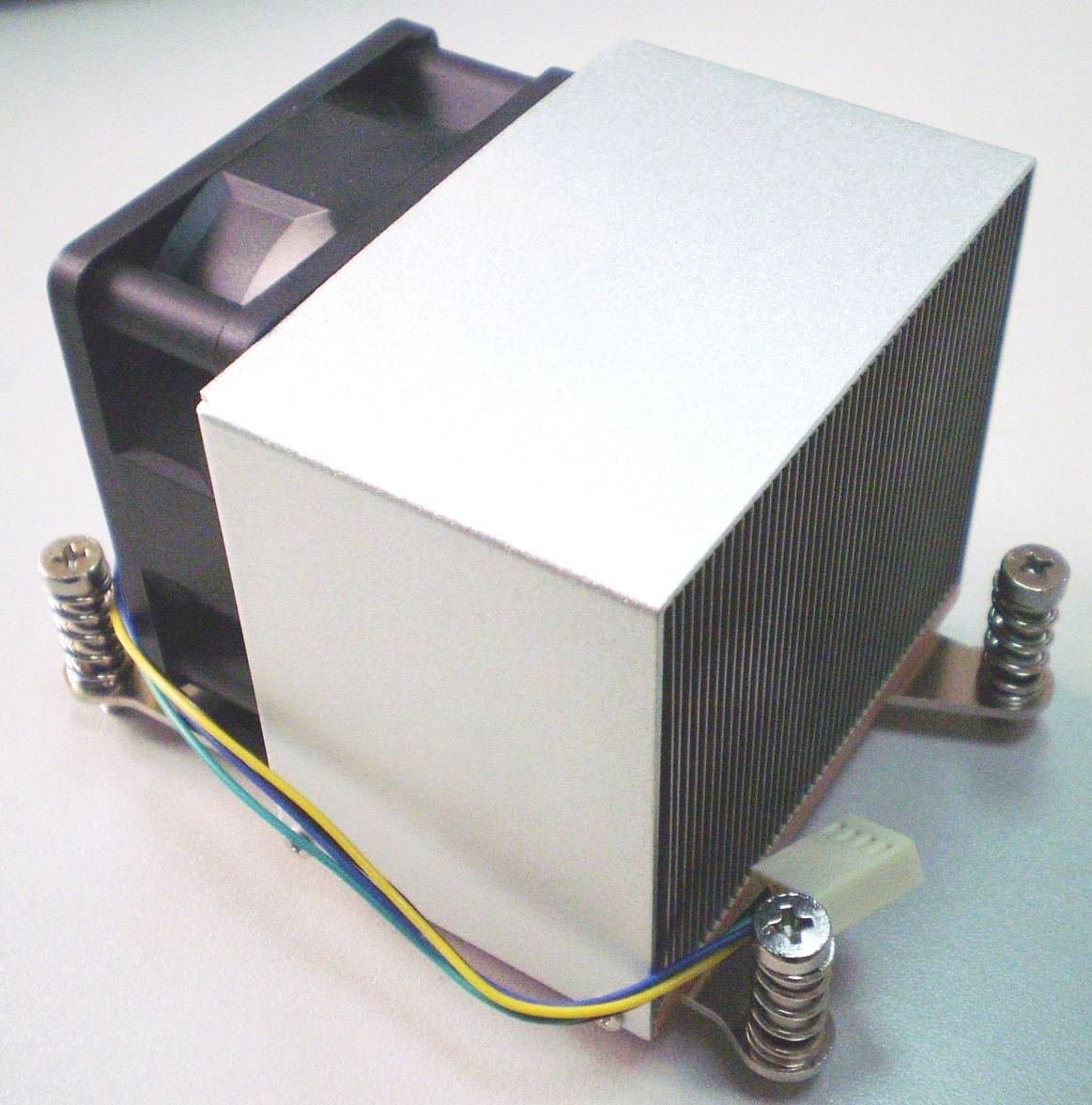

Model # ITON-D/S-E (other models) · Application : For Intel Core i7 & Xeon E5-4600, E5-2600, & E5-1600 Series Socket 2011 · Note : << Narrow Heatsink Solution >> · Dimensions : 104.4 mm (L) x 66.4 mm (W) x 66.2mm (H) · Materials : Copper base with Aluminum Fins · Fin pitch : 1.5mm · Fin thickness : 0.3mm · Weight: TBD · PWM Function: Yes · Thermal Grease: Shin-Etsu 7762 pre-applied Fan Specifications: · Fan size: 60x60x25 mm · Fan voltage: 12V · Bearing: Two Ball bearing · Fan speed: At duty cycle 0~30%: 2000 rpm, at duty cycle 100%: 7200 rpm · Noise Level: At duty cycle 0~30%: 21.6 dBA, at duty cycle 100%: 45 dBA · Air Flow: At duty cycle 0~30%: 9.99 CFM, at duty cycle 100%: 35.99 CFM · Power : At duty cycle 0~30%: 1.44W, at duty cycle 100%: 3.2W · Static pressure : At duty cycle 0~30%: 0.89 mmH2O, at duty cycle 100%: 11.62 mmH2O · Life Expectance: 50,000 hours @40C with 15~65 %RH · Fan connector: 4-pin · Lead wire: UL1061 #26AWG or equivalent · Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
