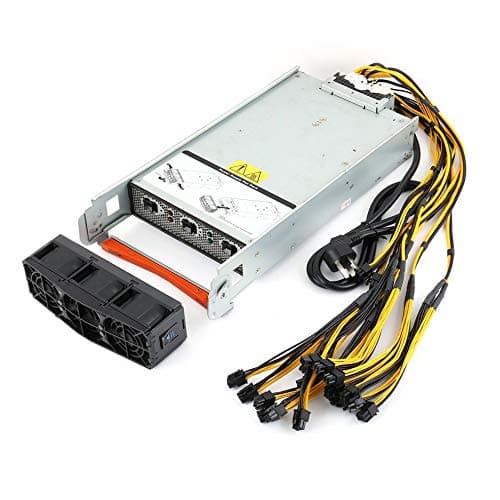

Description:Power Supply:2880 Watts IBM server core~90% efficiency at full load, power factor ~98-99%200-240 Volt AC inputIncluded/integrated 6ft heavy-duty C20 power cordC20 plug can be replaced with another type if requested (note this will add to handling time).Harness:Twenty (20x) 16 AWG braided copper 6-pin PCI-E Molex connectors (each rated to 240 Watt / 20 Amps with 80 degrees C insulation)28-inch long DC power bus implemented with heavy-gauge flexible braided copper-silicone cable (each cable rated 960 Watt / 80 Amp with 200 degrees C insulation) Wiring soldered to the power terminals (minimizes electrical and thermal resistance)All energized contacts fully insulated with electrical epoxy and/or 160 degrees C electrical tape.PCI-e connector layout optimized for S9 / S7 / L3+ / D3, with dedicated connector for controllerValue:It powers only a single S9 or S7 at a time!Most third-party bitcoin PSU rigs use breakout boards (see notes why you should not). They may use low-efficiency PSUs, which adds to your power bill and waste heat.Most third-party bitcoin PSU rigs can power only a single S9/S7/A6 anyway.Usage Recommendations:Grounded 200-240V 15 Amp outletAC circuit wiring/breakers rated at least 15 amps for one PSU / 30 amps for two.If you mine at home, a dryer outlet is one of the best options to plug this PSU.Because this is a custom modification of an existing device, the original FCC/UL/OHSA...etc PSU certifications are not applicable, and no safety guarantee is madeSpecification:Color: silverySize: 410*195*55mmPackage size: 520*275*90mmPackage included:1 x power supply
