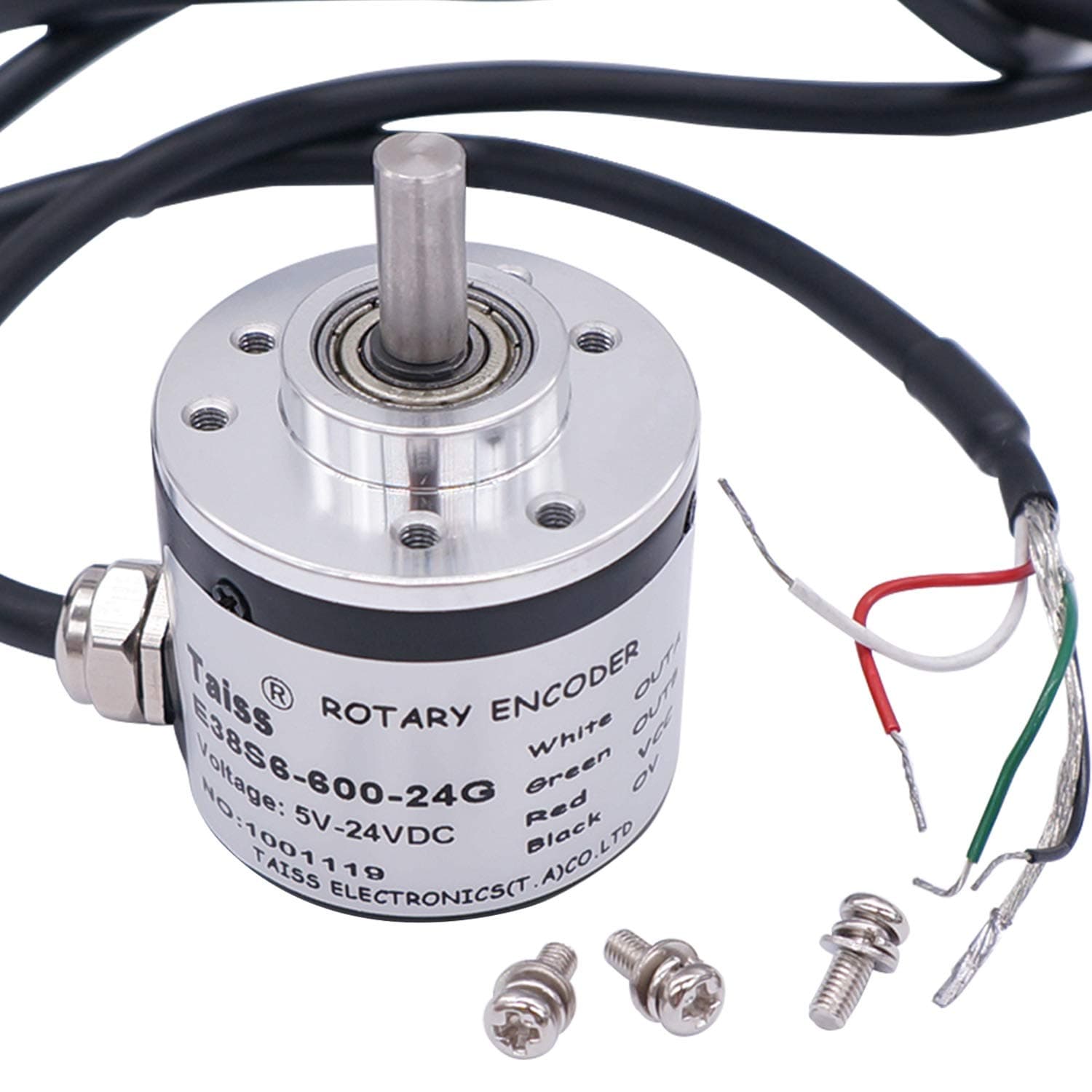

Incremental Rotary Encoder 600P/R

Very well priced and functional for a hobby grade encoder. Easily mated with a ESP32 for a motor drive project. Using this encoder required two pull-up resistors as the ESP32 IO's did pull up was not sufficient to give a clean signal.

Pretty decent encoders. If you want to use 5V directly they have provisions on the PCB. The regulator has a solder bridge between the input and output. Simply connect the bridge with a ball of solder or with a 0805 0 ohm resistor. Like wise on the back of the PCB there are two 0805 locations for pullup resistors. I used 10K and the output works great when connected to a DRO.

For those that need assistance here is what you need to know: 1) they work best at 6v and up. This is only required to power the board and transmitting LEDs. If has nothing to do with the output. You can take apart and wire directly to the output of the 5v regulator and supply it 5V. But nothing lower. 2) these are open collector NPN. This means the signal wire is connected to the collector of an NPN transistor. So you can use it with 3.3v, 5v, etc for control logic but you need to either tell your microcontroller to use a PULL UP resistor, or install your own pull up resistor that connects from the control voltage say 3.3V to the control/pulse wire. Then connect the grounds together and hook the control wire to the microcontroller input pin. I'm not certain the minimum voltage for the control transistor but I would guess anything over 1.5v would probably be fine. I use them on an esp32 and use the internal pull up on the input pins. The esp32 has a built-in counter up to 80Mhz that can be used for this purpose. These are smooth rotation, no exact stop points. So they work well for free spinning applications like motor control. They are not great for a knob because there are no detents. But if you wanted those there are other options. I put a pulley on it with GT2 belts to the wheels of my robot and they work perfect for that task. I hope this helps inform future customers.

Product works fine but the specified 5v input is not correct. Product will not work at this voltage. I was able to make it work with a 12v supply.

I usually don't write product reviews, but this encoder works and it works well. I used it with the hardware quadrature decoder on the Arduino Due and even at 1000 RPM, it does not skip a pulse. I bought the 600p/r version and was under the impression that it was total quadrature rising/falling edges, but it turned out to just be the rising/falling edges of a single phase. This means that the resolution is actually 2400 total rising and falling edges pulses per revolution.

First one I ordered was dead on arrival. Wasted several hours trying to debug it but an osciliscope confirmed that whether I powered it at 7V, 12V, or 24V the output instead of being two square waves of close to the input voltage was instead about 0.3 volts with momentary dips of maybe 0.1 volt every time there should be a change in A or B value. Looked like an inverted sawtooth output instead of a square wave output and the signal was too small to read with a Pi Pico. Will order a second one and see if I was just unlucky, I sadly held onto this for a while busy with other projects and I'm outside the return window.

Great product, all i ask though is if i can get the dimensions so can design a mount for it, i need to know where the screw holes lineup. Thanks

I purchased this encoder to determine the position of a magnetic loop antenna rotator that was for outdoor use. For that purpose it works exceedingly well paired with a Raspberry Pi and running off 5v (so far has been reliable but I plan to switch to 12v after reading some reviews). I made no attempts to waterproof the device or make an enclosure for it and the recent tropical storm really drenched this encoder heavily. During the rain it stopped reporting positions however a day later and its dried out and working again with no intervention from me! So its not specifically weatherproof but it does appear to have survived this time. I plan to weatherize the device with silicone sealant and dielectric grease in the hopes that it can work during the rain as well.
